Cheap easy to build gabion rock walls, shipped all over the USA in kit set

6 gabion panels are used to construct the first gabion, see video

gabion assembly diagram

Shared end panels may not be needed

Unseen internal panels can be 1/8th wire mesh

gabion stone fencing ideas gabion fence seat idea

Check out the info on foundations

Gabion kitset ready for dispatch

gabion stone fencing ideas gabion fence seat idea

Watch our youtube video on Helical connectors

Watch our youtube video on brace wire installation

Gabion which mesh

How to assemble a gabion basket in 4 minutes

Gabions ready for rock, long gabions come with diaphragms

Max spacing of bracewires 14 inches in both directions
Temporary wires at the top of the gabion, will make it easier to install the lid

gabion stone fencing ideas gabion fence seat idea

For 1/8th mesh, temporary supports before filing gabions

How to fill the gabions

gabion stone fencing ideas gabion fence seat idea

The "best rocks" are hand placed on the face of the gabion

Under or over sized rocks placed in the middle of the wall

gabion stone fencing ideas gabion fence seat idea

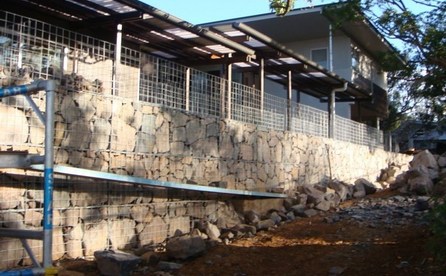

Additional rows of gabion baskets added to wall

gabion stone fencing ideas gabion fence seat idea

Gabion walls over 2:1 stability ratio will require support posts

Check out the info on wall stability. Support posts are not recommended for retaining walls, unless engineer designed

gabion shutter fillingS gabion stone fencing ideas

Check out the info on gabion machine filling here.

The structural integrity of the gabion relies on the gabions being tightly packed with hard, heavy, durable fill. Loosely packed or light weight fill compromises the gabions ability to resist the loads placed on them.
